Floating Pod

Floating Pod

The Floating Pod utilises Hydroponic Shelves to provide produce for its inhabitants. It uses an Ebb and Flow method, also known as a flood and drain, to provide nutrients to its plants. The reservoir holds water and a nutrient solution, and through a series of pipes, the trays of plants are periodically flooded and drained with the nutrient solution from the reservoir.

Plants are potted in a growing medium and sit only around an inch into the water, allowing the roots to fully absorb the nutrient solution while still receiving proper aeration.

Location: Puerto Chicama, Peru

Date:  December 2018

Size:  900 sq/ft

Focus:  Residential Hydroponics

                    Open Pod Axonometric

                   Open Pod Axonometric

                    Closed Pod Axonometric

                   Closed Pod Axonometric

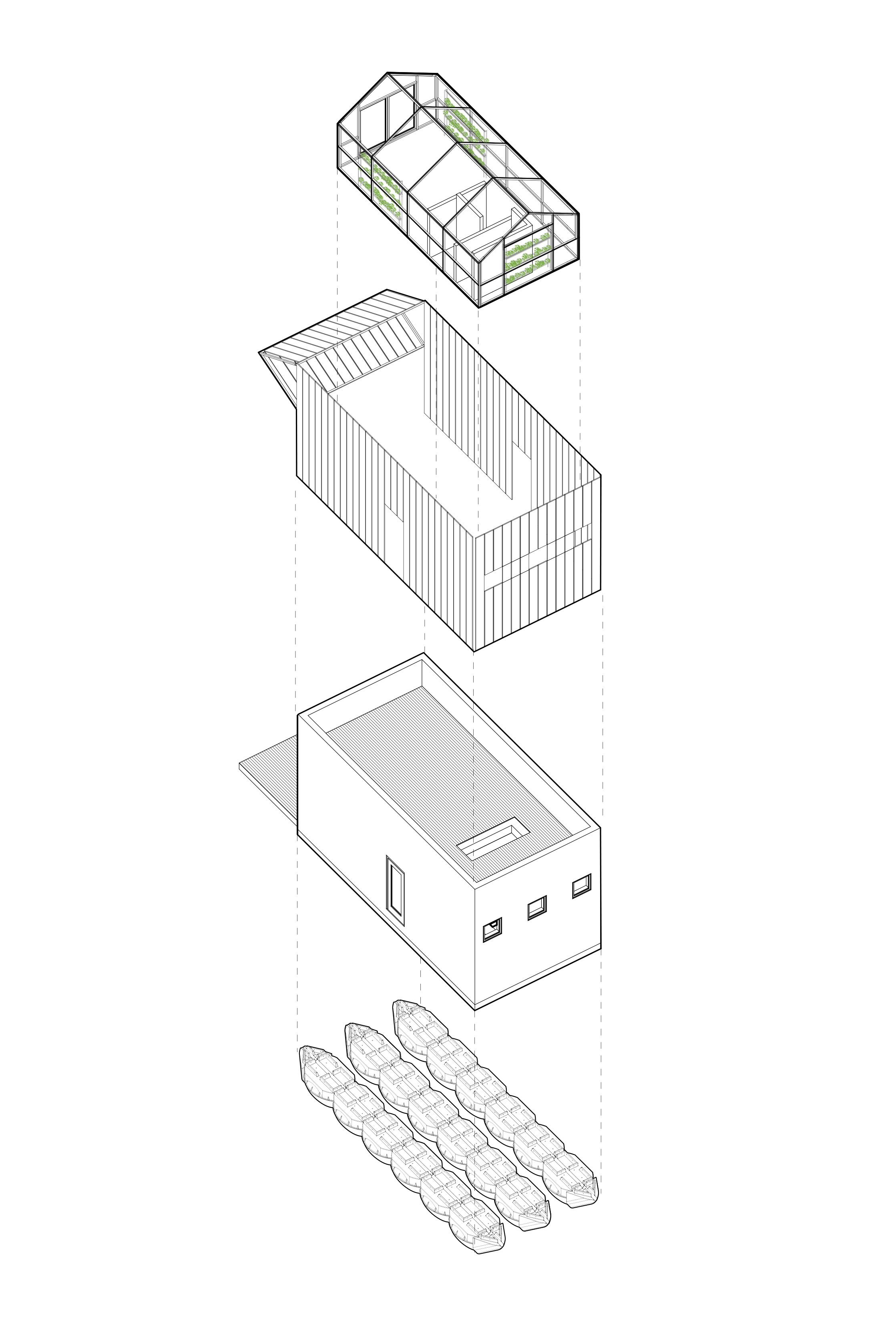

EXPLODED AXO-01.jpg

Greenhouse



















Wood Shell



















Prefabricated Pod

















Floating Pontoons

















HYDROPHONIC SYSTEM DIAGRAM 2.png


1. The reservoir holds water and a nutrient solution. Two tubes connect to the reservoir, one of which delivers the water to the very top tray, the other is the overflow tube, which delivers the water and nutrient solution back into the reservoir.

2. The nutrient solution is delivered via the pipe and is then dispersed across the tray.

3. Special LED light rails to provide artificial lighting to supplement the growth of plants.

4. The overflow pipe runs the nutrient solution down to the tray below.

5. The overflow pipe returns the nutrient solution back into the reservoir.

6. A pump timer is used to control the frequency of the flooding.
